Download the Design Tool Client for Interaxo BIM Data

To enable the synchronization of data between the design model and Interaxo BIM Data a client for Interaxo BIM Data must be installed.

Archicad Design Tool Client are only available for Windows operating systems.



About Design Tool Clients



1. Click on Download on Interaxo BIM Data website (down, left side)

2. Click on Archicad folder

3. Select the version of Archicad applicable and download the installer package file

4. Follow the instructions to install the desktop tool client



How to use the Design Tool Client

Log in

The Interaxo BIM Data Client is accessed by clicking on the Interaxo tab.

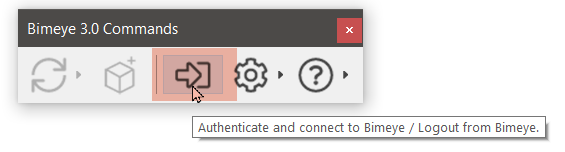

1. Click on Authenticate and connect to Interaxo BIM Data / Log out from Interaxo BIM Data

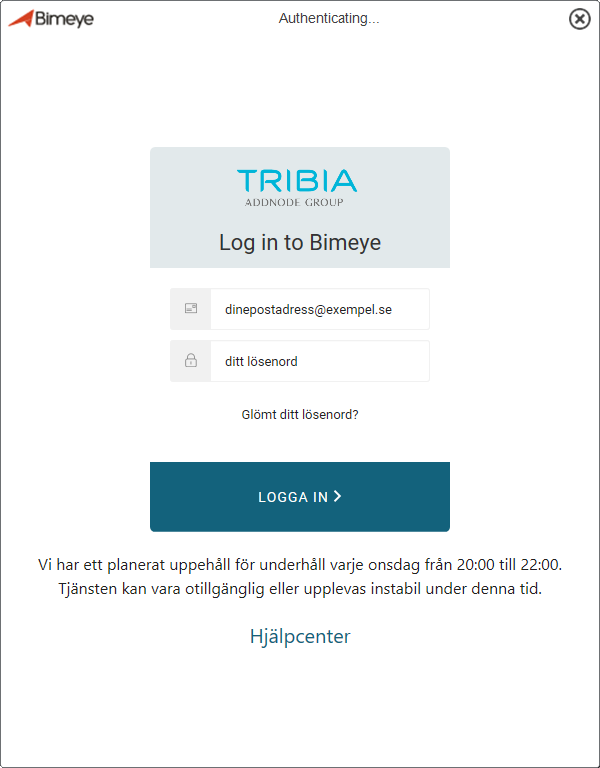

2. Enter your credentials.

3. And click on Log in (Logga in)

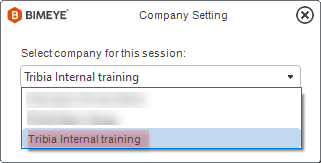

4. If applicable; Select the Company





Settings

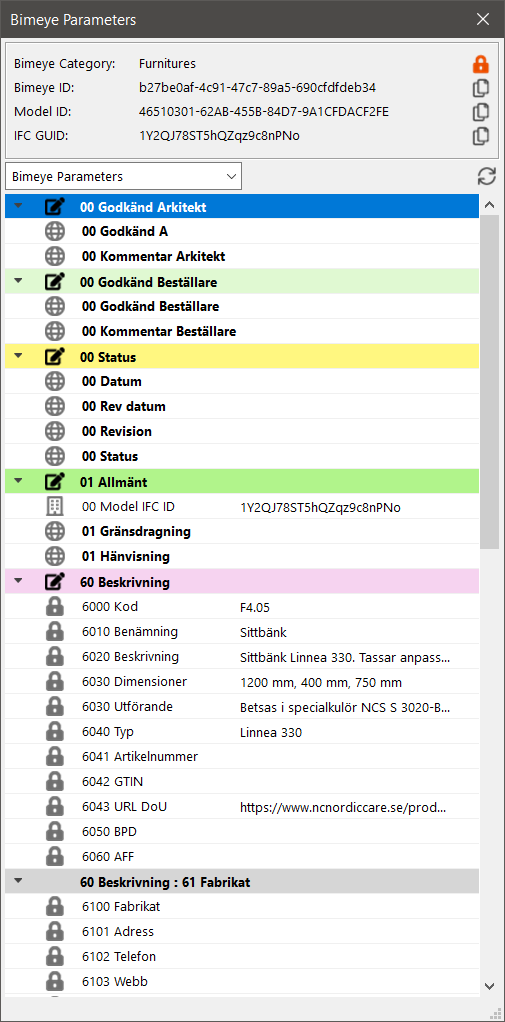

Show All Parameters from Interaxo BIM Data

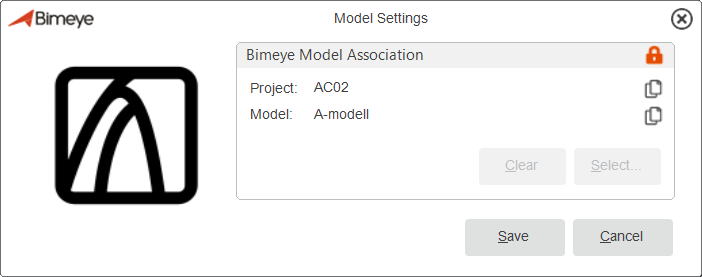

In the Model Settings you can see what model in Interaxo BIM Data the Arhicad model is connected to

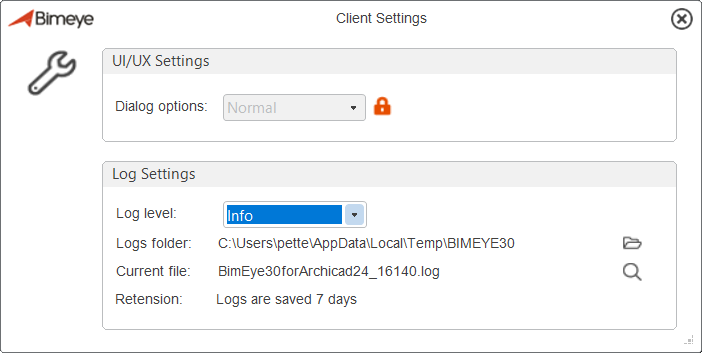

In the Client Settings you can see info about logs, if you run into problems during a sync you can get help faster by following this log setting guide



Help

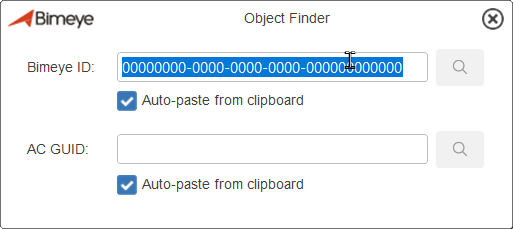

Show Interaxo BIM Data Object Finder



Copy the BIMEYE ID from web to Object Finder in Client

Contact Help Center

Check for Updates

Go to Interaxo BIM Data

About Interaxo BIM Data



Sync

Sync Model Metadata

Send Model Geometry

Show Metadata Errors and Warnings

Open Interaxo BIM Data Metadata Sync Log



Place rooms

Place rooms that are created in Interaxo BIM Data
