In order to be able to describe data on objects in the model in Interaxo BIM Data, this must be linked to the project on Interaxo BIM Data web and synchronized there.

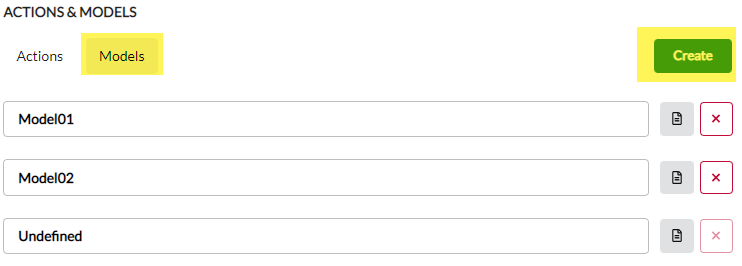

Step one is to create connection points in the project on the Interaxo BIM Data web.
Install Interaxo BIM Data Design Tool Client for your design software.
How to Revit
How to Archicad
How to SimpleBIM
From the model with the add in, the model is connected (associated) to the prepared connection points on Interaxo BIM Data web and project.

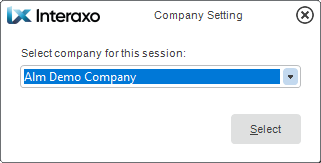

Start by logging in. If you have access to several projects at different Company, choose the right Company.

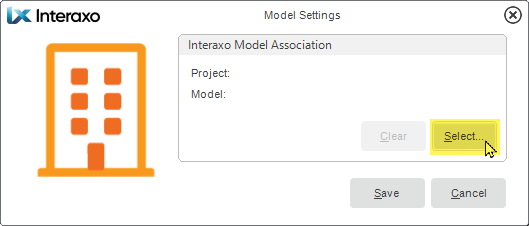

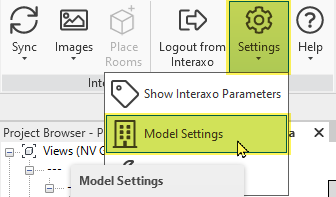

Then go to Settings and then Model Settings.

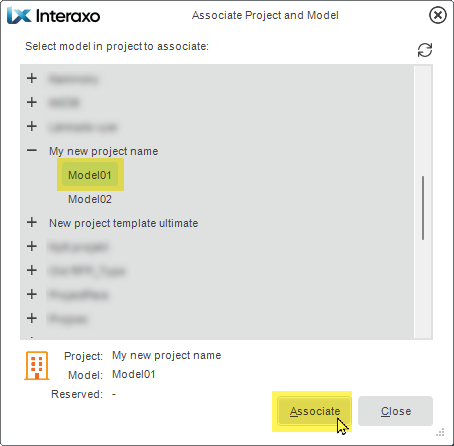

The project will appear in the dialogue. Click on the plus sign to see the model or models you can connect to. If a name here is light gray, that model is already connected and can not be connected to.
Select the name of the model you want to connect and then click Associate.

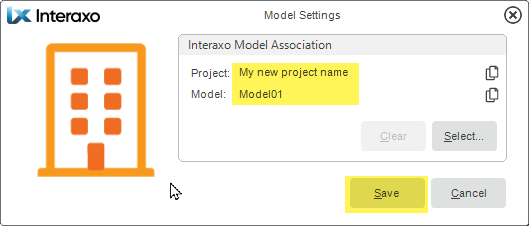

The model is now associated. Click Save and then save your design model so that the association is saved for the future.
