Introduction

In general Interaxo BIM Data does not need any actions from the end user to work with upgraded models.

Upgrade your model as your design software recommends, download the DTC version for the new version and you can synchronize with your Interaxo BIM Data project again.

We do however recommend that you create a backup before you upgrade models since unforseen things can happen.

Schema upgrades for Revit 2024+

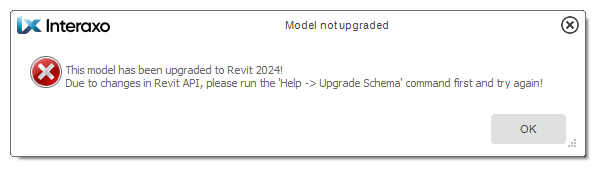

For models that are from Revit 2023 and older version, upgrading them to Revit 2024 or a later version will need some effort for our Interaxo BIM Data DTC to work. This is due to technical changes between the two versions related to Schemas.

Use the following instructions to ensure a smooth model upgrade

1. Create a backup in the original model version
2. Open up the Revit version you would like to upgrade the model to and do the upgrade
3. Download the Interaxo BIM Data DTC for the Revit version you chose
4. Save your model and make sure you have full and exclusive access to the model

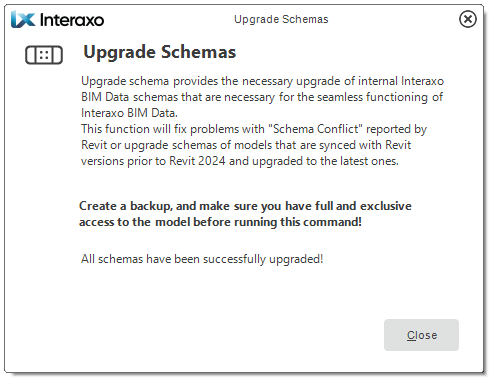

5. Go to our Help -> Upgrade Schemas and run it
6. With the schemas successfully upgraded you can now save the model and synchronize the model again with Interaxo BIM Data!

If you run into issues with this upgrade you need to contact support to get assistance.
