Short Feature description Interaxo BIM Data

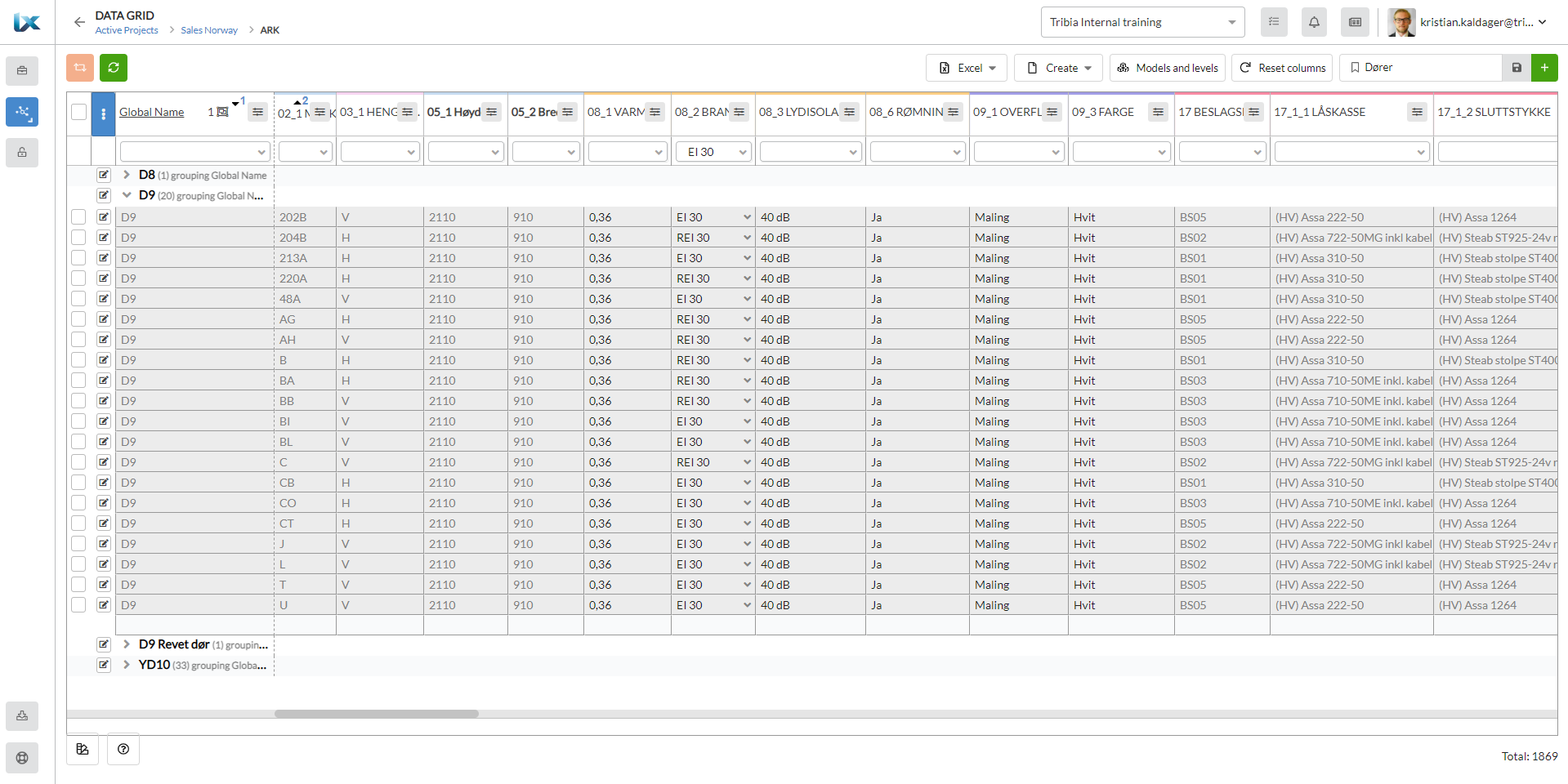

Data handling in Grid

Gatherered data can be sorted, grouped or filtered for easy handling of large set of data. Every configuration can be stored in a list in the database for easy access later on. Filtering can be combined for each datavalue.

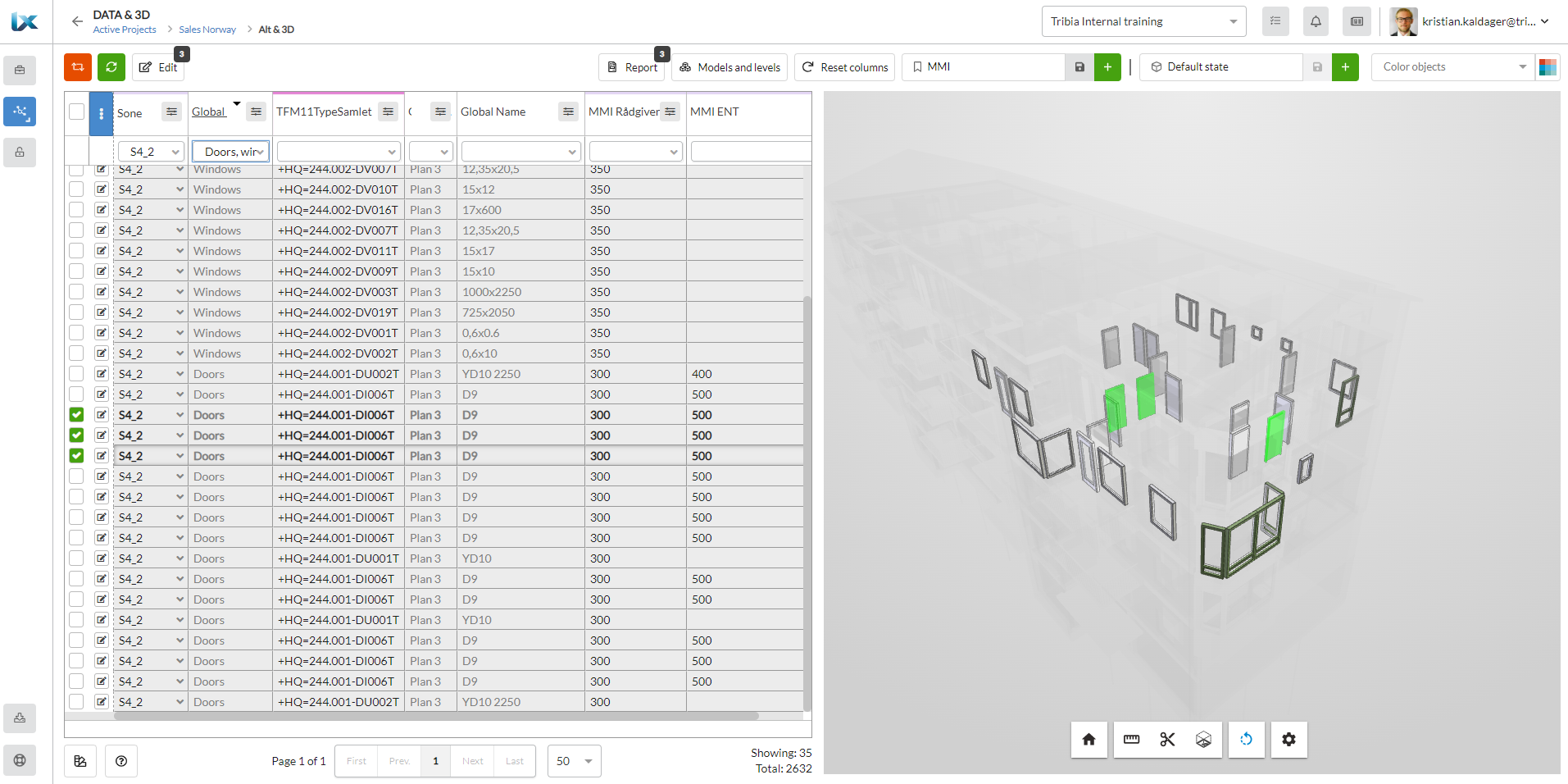

Showing both data and 3D

3D data can be synchronized at the same time as data for each model and is searchable and the data can be edited via the 3D graphics. Graphic responds to filtering and selection in grid.

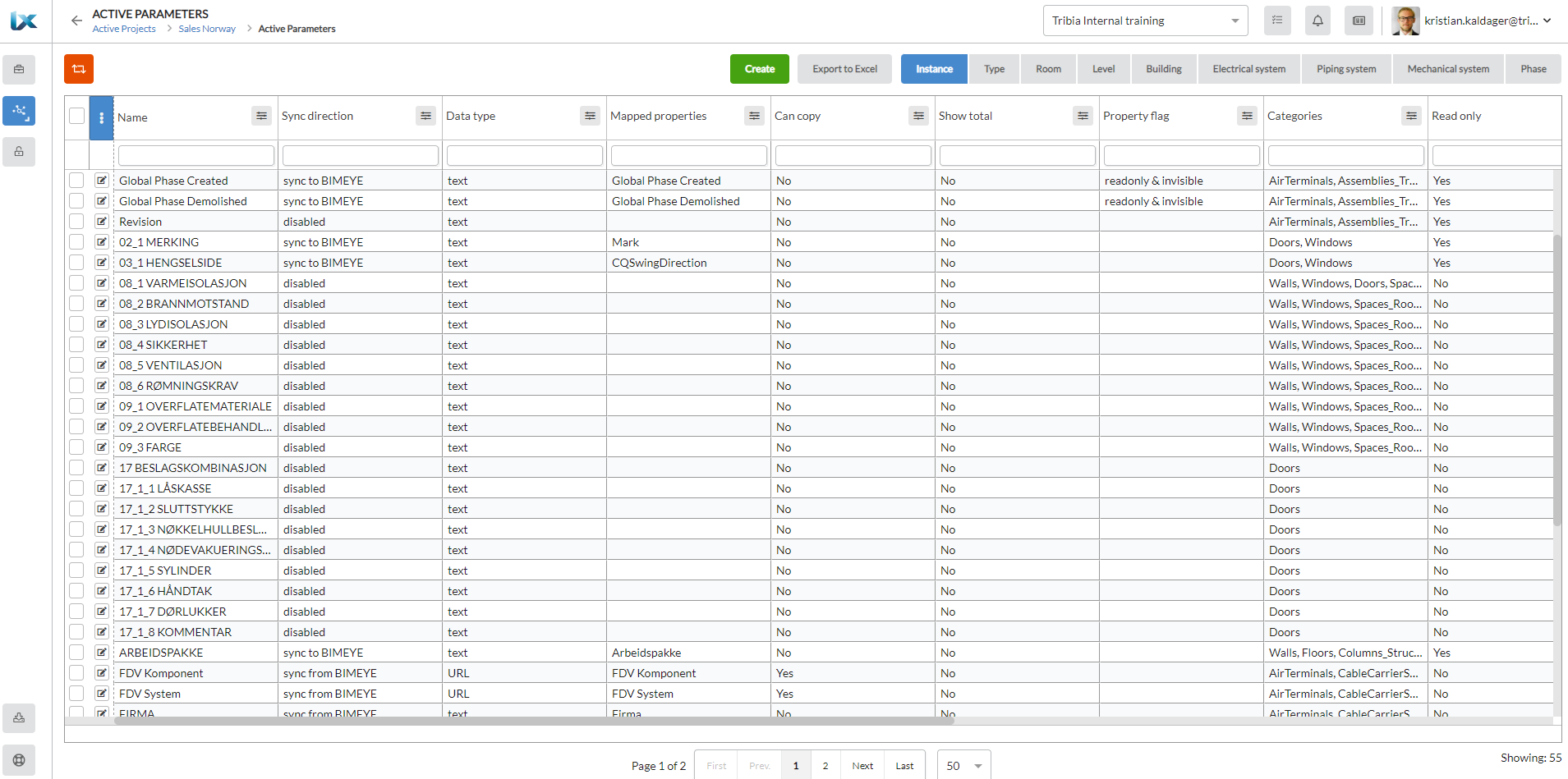

Parameter configuration

Every project can be configured with unique parameters for collecting data and enriching both in the database for example reporting, or/and datavalues sent back to Design model.

Parameter groups

For an effective handling of many datavalues groups of parameters can be configured. To a parametergroup a preset of values can be defined (items…) for faster and simplyfied editing of datavalues.

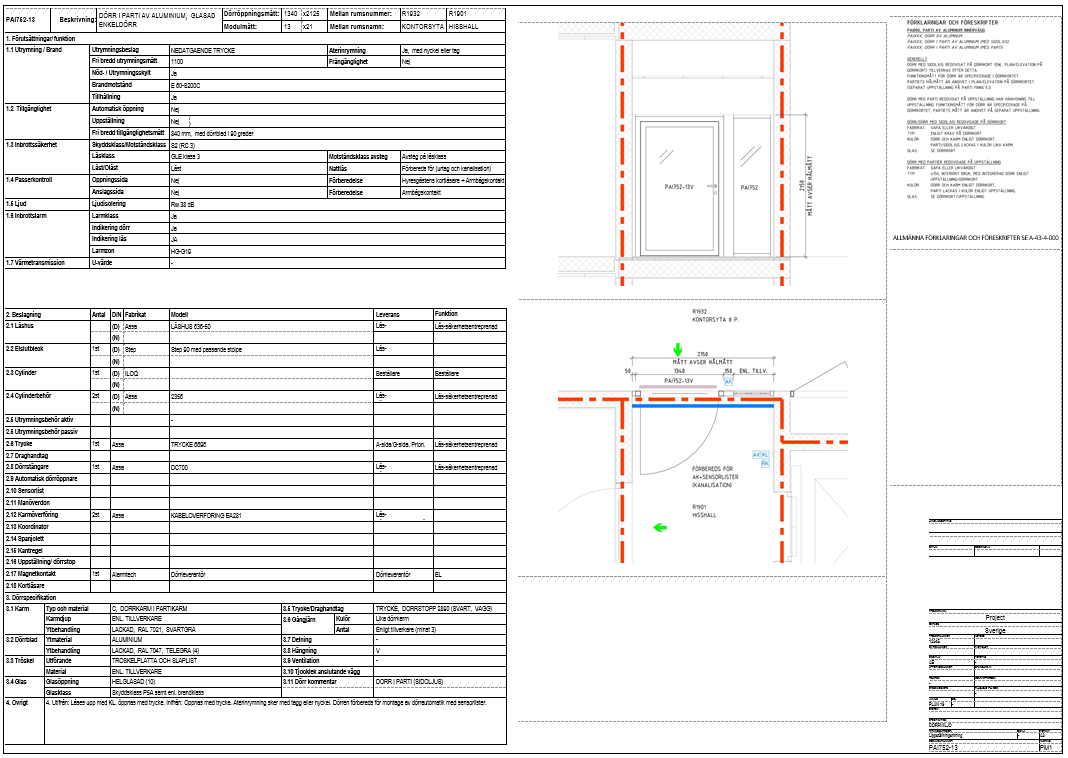

Reports

A template can be created and designed according to for example the company  “graphics” in Word and then used for extracting both data and images in tables or as describing documentsin reports from Interaxo BIM Data. And with a set of “commands”  users can customize any layout and design to create good and comprehencive looking report. The resulting report can be downloaded as a Word file.

Images

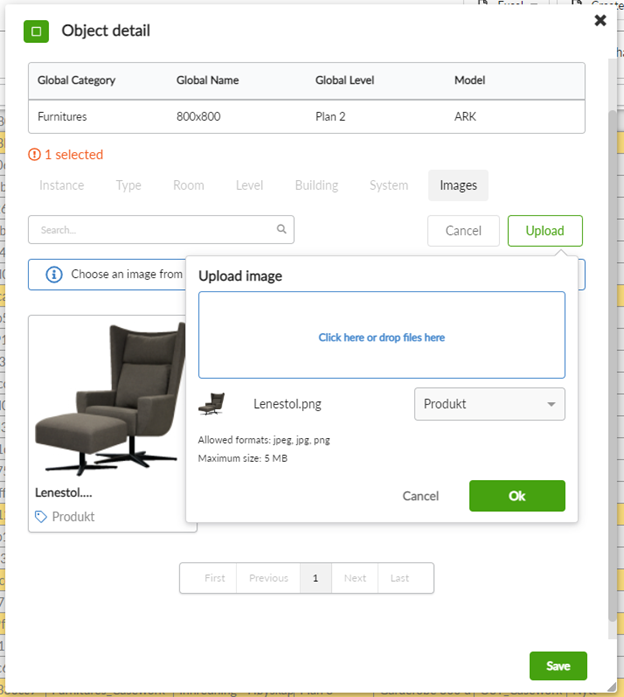

Images can be uploaded or automatically generated from the design models for use in reporting or looking at in the grid.

Bookmarks

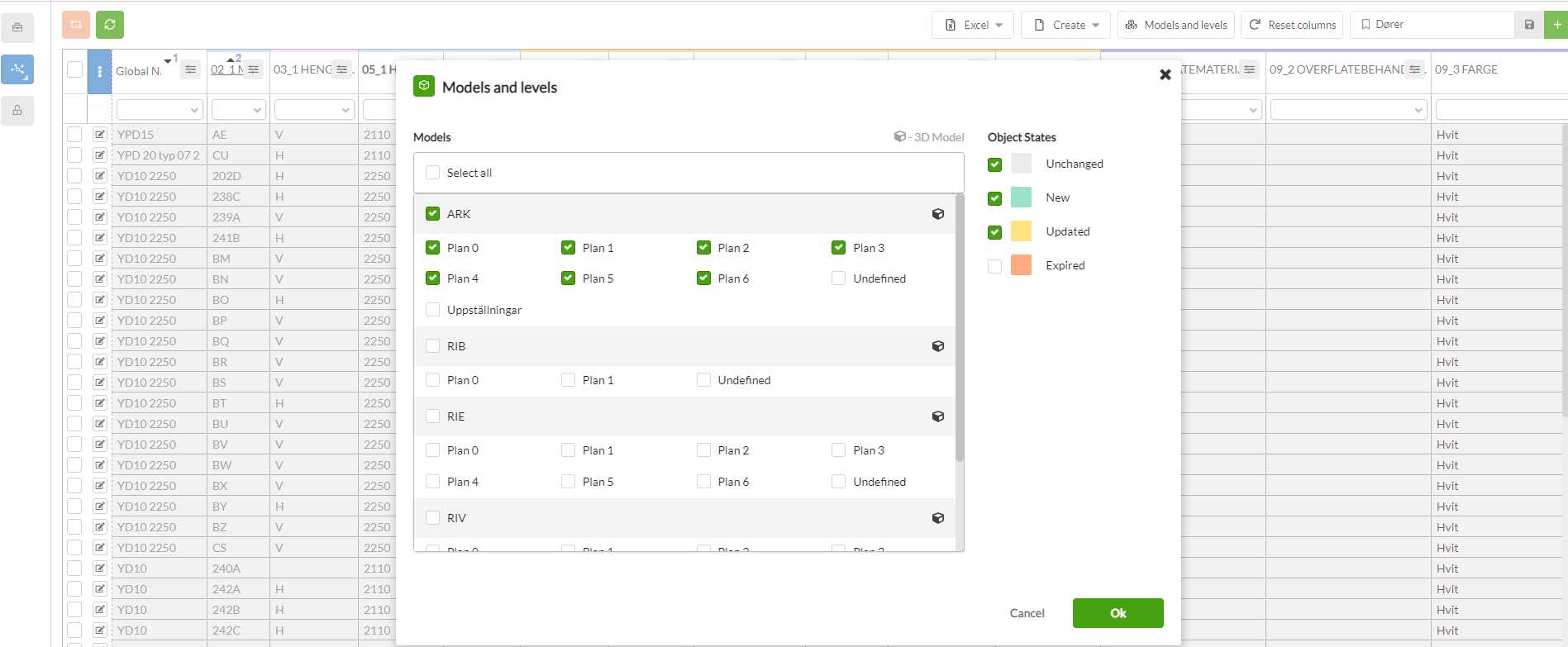

Bookmark and share your BIM Data with others that you need input from or save for later work. Filter things like models and what parameters you would like to work with to focus in on what is relevant for you and other project participants.

Snapshots

Snapshots can be taken with decided interval for looking at and reporting changes that occur in the project beetwen dates of choise. A Snapshot is automatically created when a syncronization is done from the designmodel or a manual one can be set.
