Sync Logs show the history of synchronizations between the design tool and Interaxo BIM Data. You can see the model name, status, time, type and user of each synchronization. You can also download an error log if something went wrong.

Activity, shows the list of project activities, such as creating new parameters or making changes. You can search for activities by typing in the search field.

Data grid Logs show the history of data grid generations in Interaxo BIM Data. You can see the model name, action, status, time and user of each generation. You can also download an error log if something went wrong.

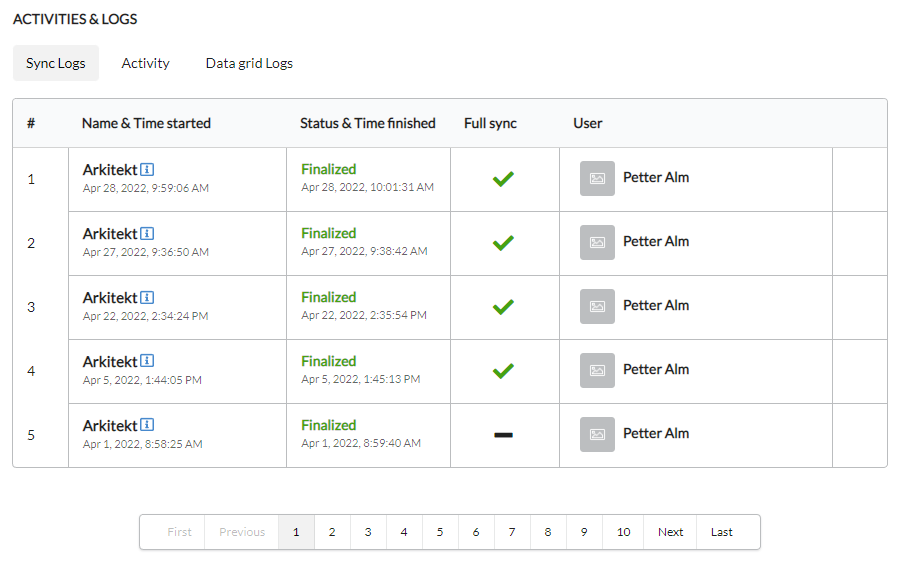

Sync Logs

The Sync Log registers the initiated synchronizations made with the design tool client.





Name & Time started

The model name and timestamp when synchronization was iniated.

Status & Time finished

Finalized if the synchronization was compled as expected.

Canceled with error if the synchronization did not work as expected.

Download the error log by clicking .

Bmoprocessing indicates that creation of BIM-model in Interaxo BIM Data is ongoing, i.e. task is still running.

Full sync

If full model synchronization was performed this is indicated by a green tick.

If partial model synchronization was performed, i.e. selected objects in the model when synchronizing, this is indicated by .

User

Indicates which project memeber initiated and performed the synchronization of the model.

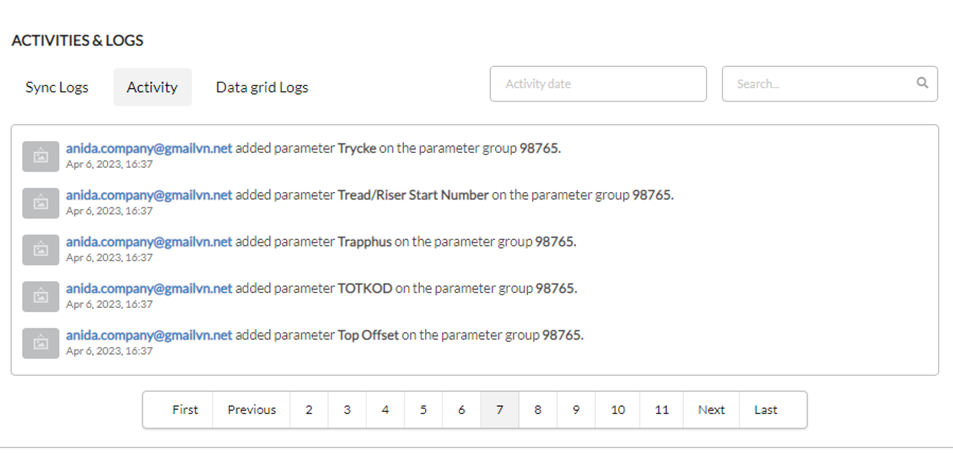

Activity

List of project activities, such as creation of new parameters, changes etc.

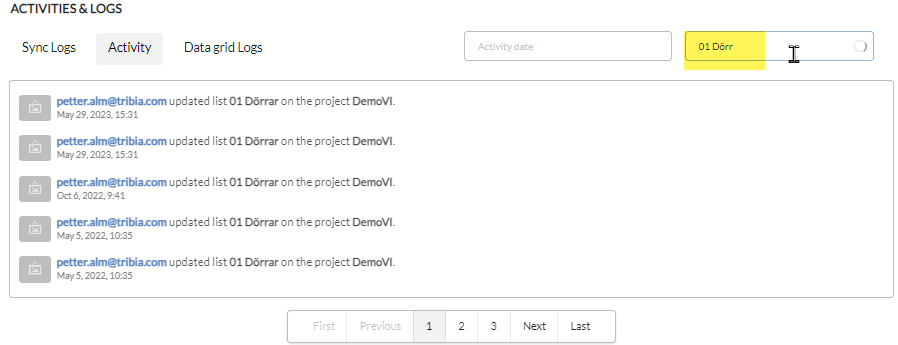

Searching for activities

The search field filters activities by filled in text. E.g. username, parameter name etc.

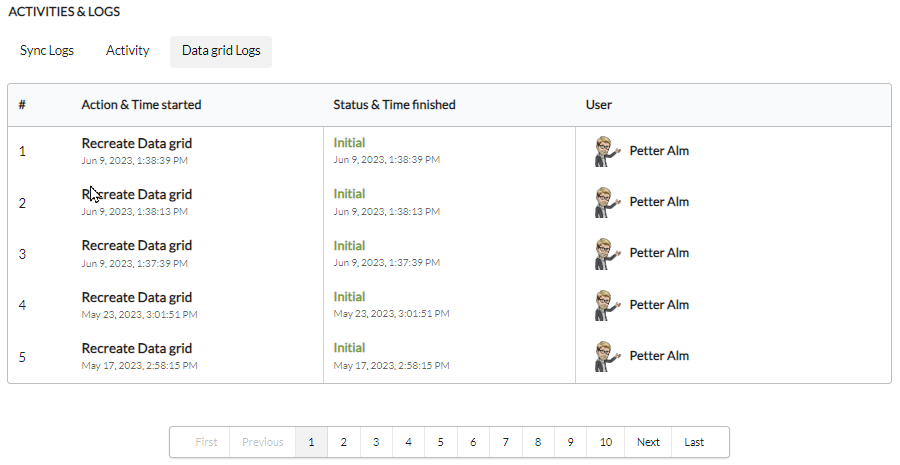

Data grid Logs

The PWT Log registers the initiated generations of the data grid in Interaxo BIM Data.

Action & Time started

The model name and timestamp when synchronization was iniated.

Status & Time finished

Finalized if the synchronization was compled as expected.

Canceled with error if the synchronization did not work as expected.

Download the error log by clicking .



User

Indicates which project memeber initiated and performed the synchronization of the model.
